3 Bay Oak Framed Garage Kits
Avaliable in 3 Depths
Specification of parts:
150 x 150 Oak Posts
170 x 150 Oak Ties and Eaves Beams
150 x 75 Oak Rear-aisle Eaves Beam
150 x 75 Oak Soleplate
Ex 225 x 50 Oak Curved Braces
100 x 47 Studwork at 600mm centres
100 x 47 Rafters at 400mm centres
2-Ex 200 x 38 Softwood feather cladding
All our softwood is clear-treated with vacsol-aqua to prevent fungal and insect attack
What is included?
What is included?
The kit includes the pre-joined oak frame with treated softwood studs, rafters and feather-edge cladding. It also includes all fixings required to assemble the kit, including stainless-steel nails for use in oak and collated nails for use in nail guns to install the rafters and cladding.
The kit comes with full assembly instructions and the rafters are pre-cut making them easy to install.
What is not included?
The kit does not include assembly, any groundwork's, bricks or roof covering materials (felt, battens and tiles). We advise using 150mm wide brick, a standard 215mm wide brick wall is suitable. Delivery charges are also extra, and will be based on post code. If you want to arrange to collect your building, that is no problem.

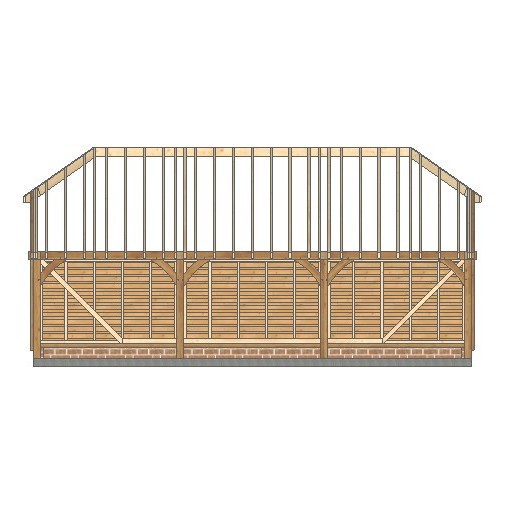

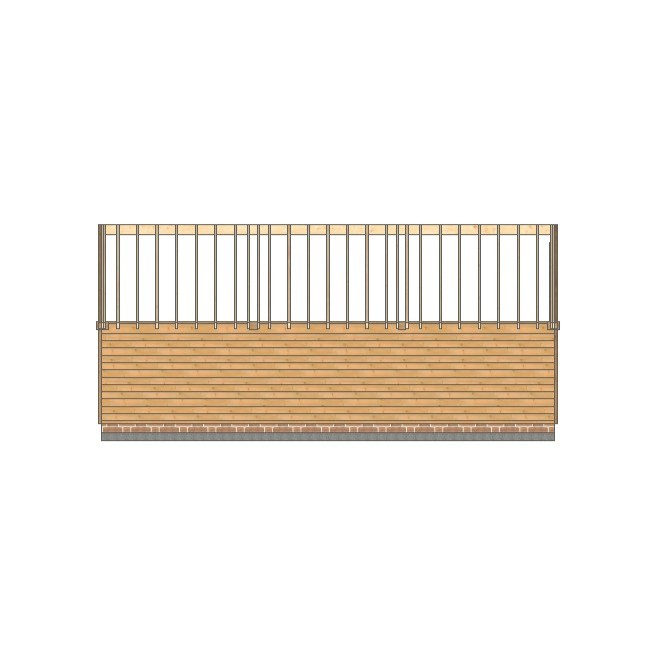

3 Bay Oak Framed Garage Kit
A-Depth

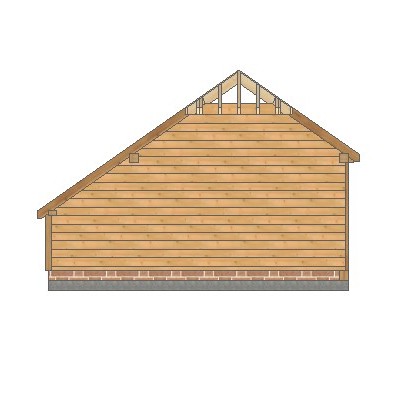

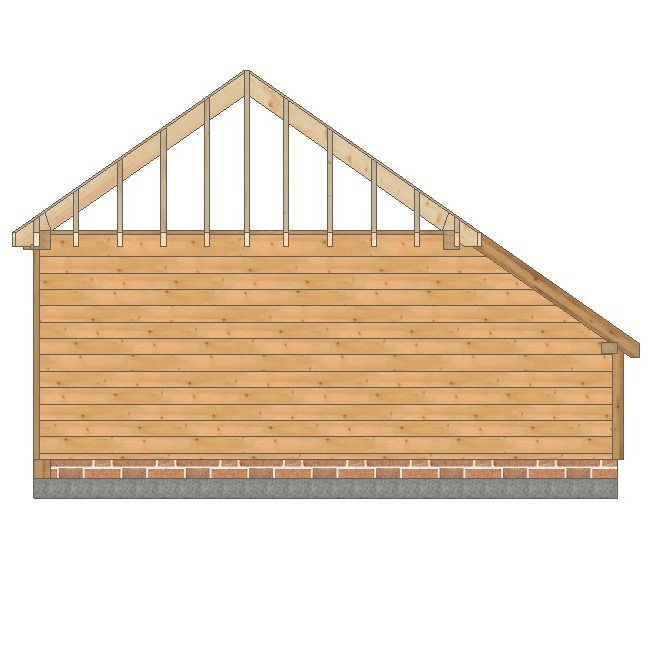

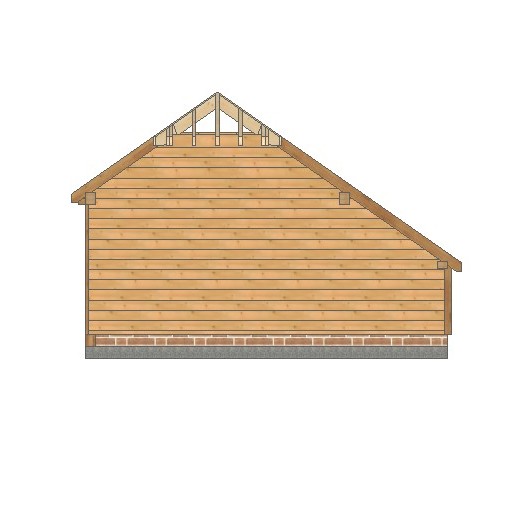

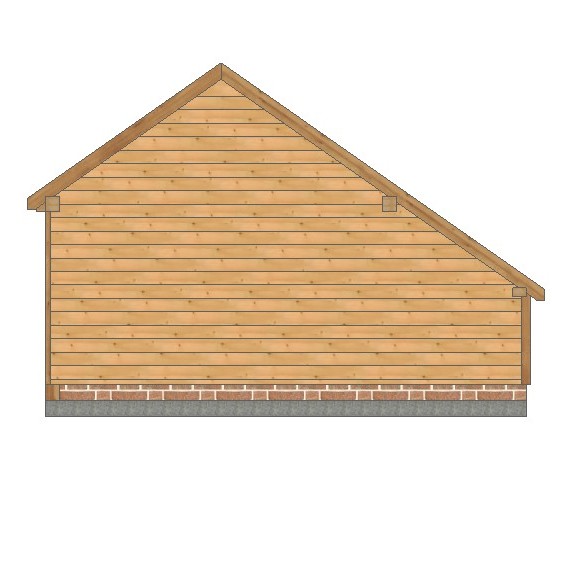

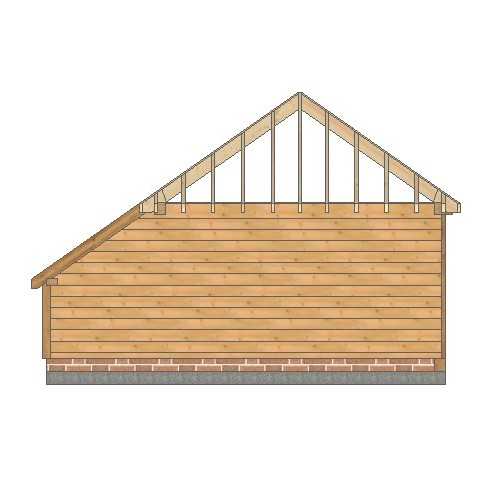

Our A-Frame garages have an integral rear aisle giving the advantage of added depth without increasing the ridge height of the building.
The three bay variants are 8925mm wide x 5350mm deep with a ridge height of 3850mm approx.

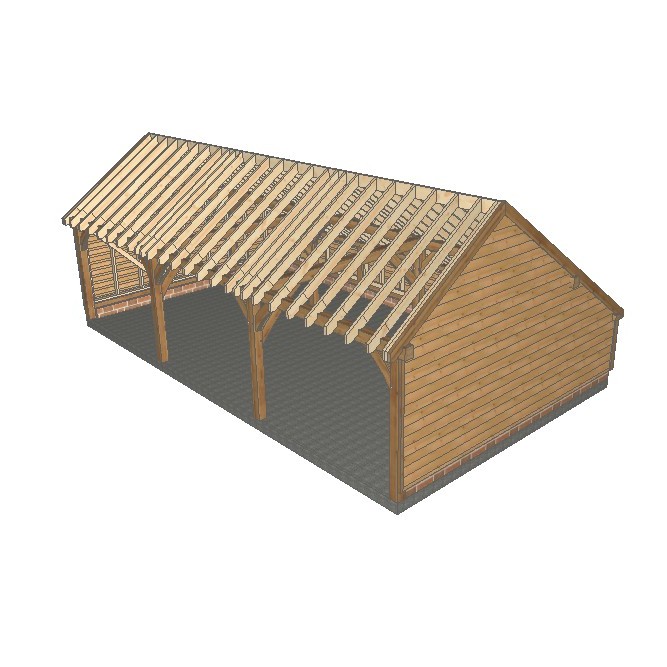

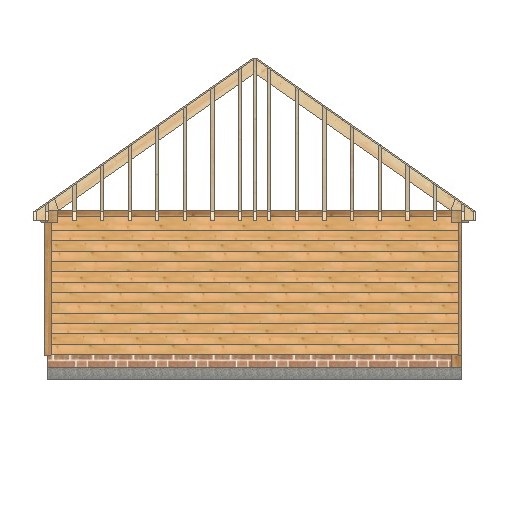

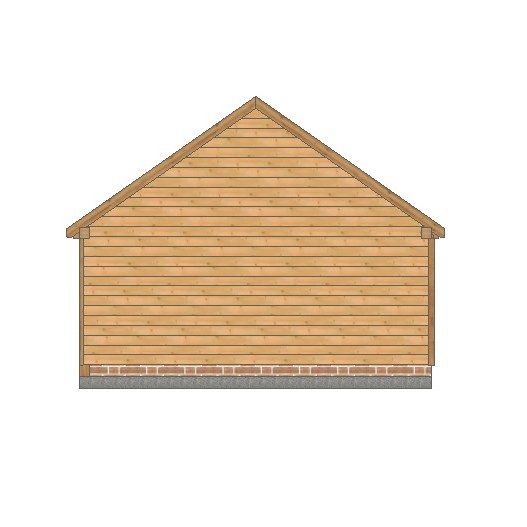

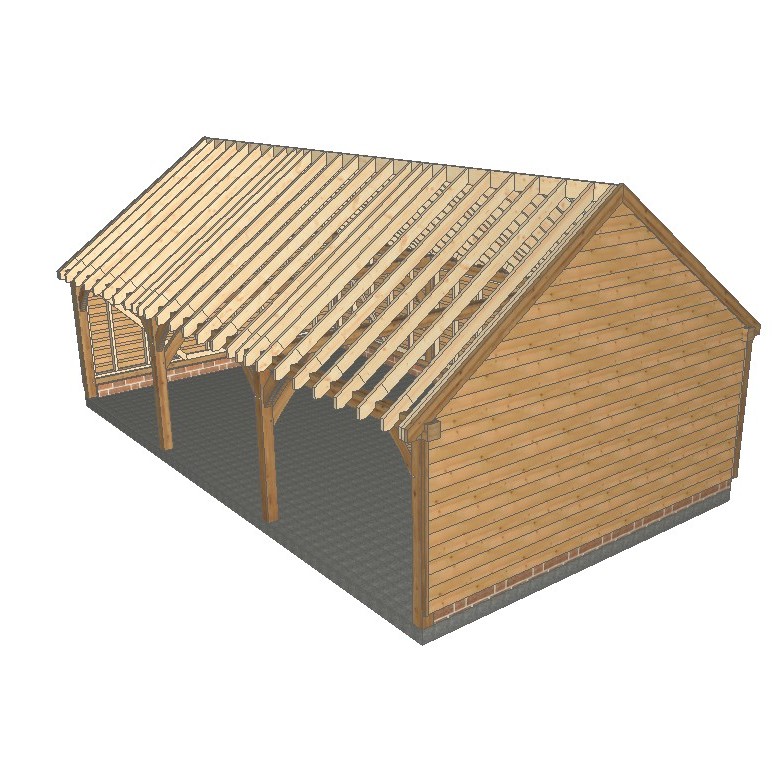

3-Bay A-Depth Garage With Gable Roof
SKU00029

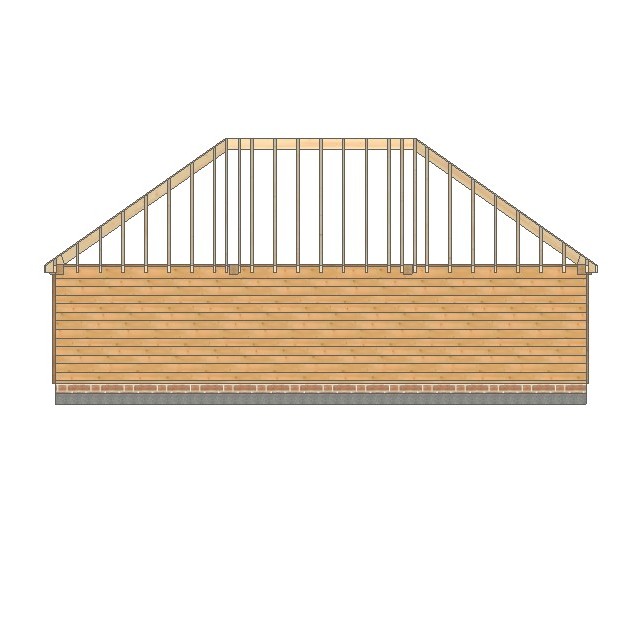

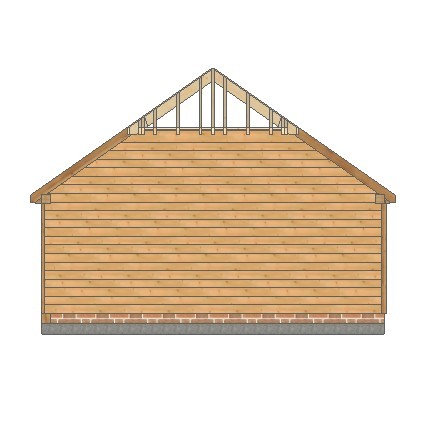

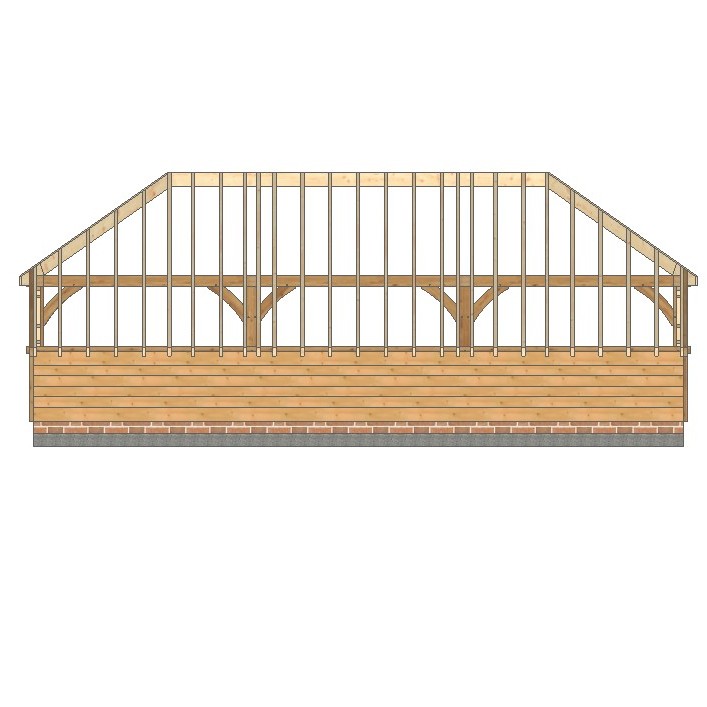

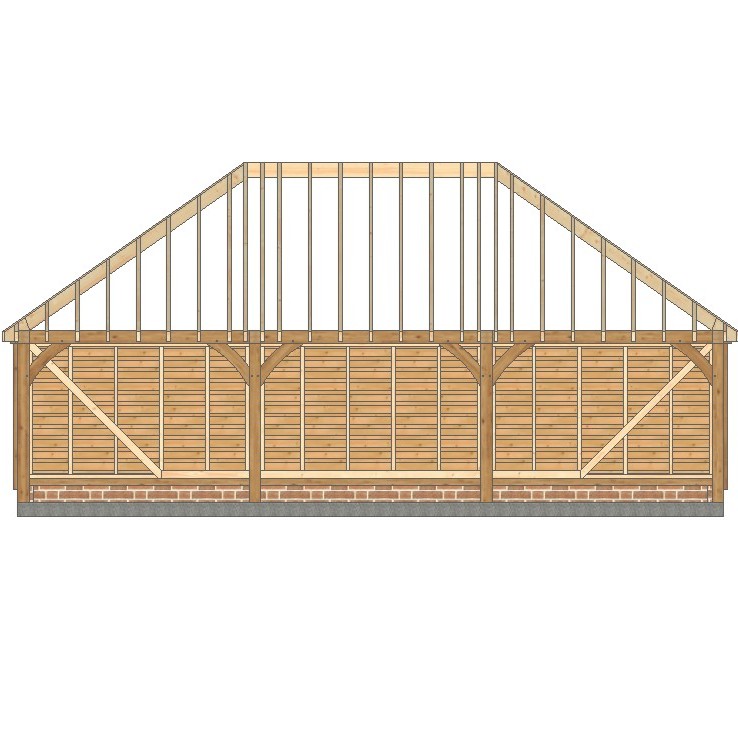

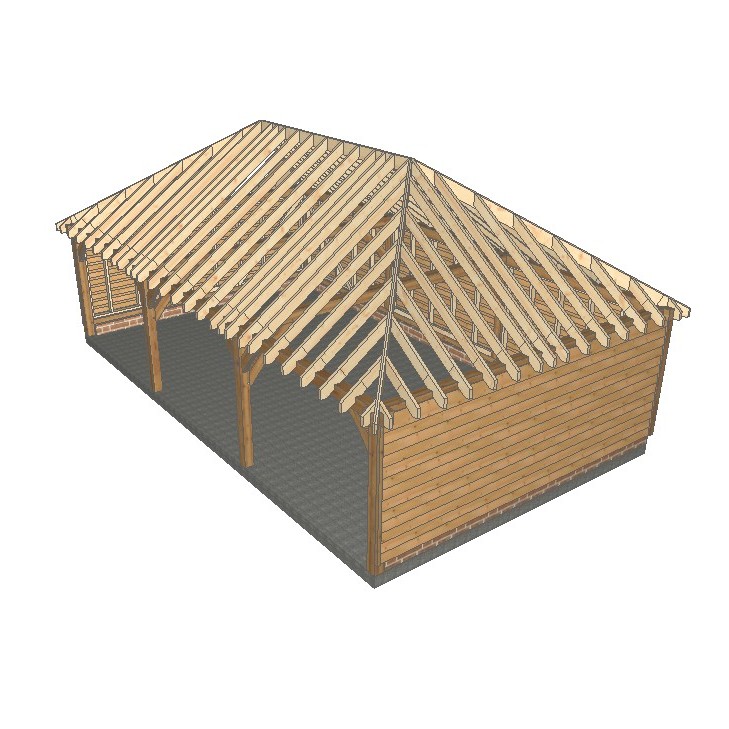

3-Bay A-Depth Garage With Fully Hipped Roof
SKU00031

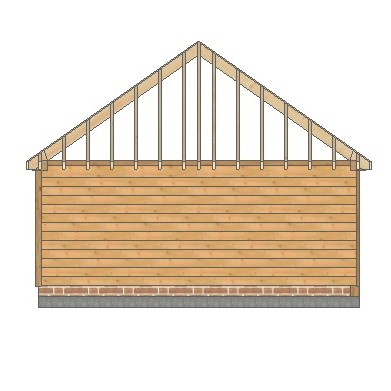

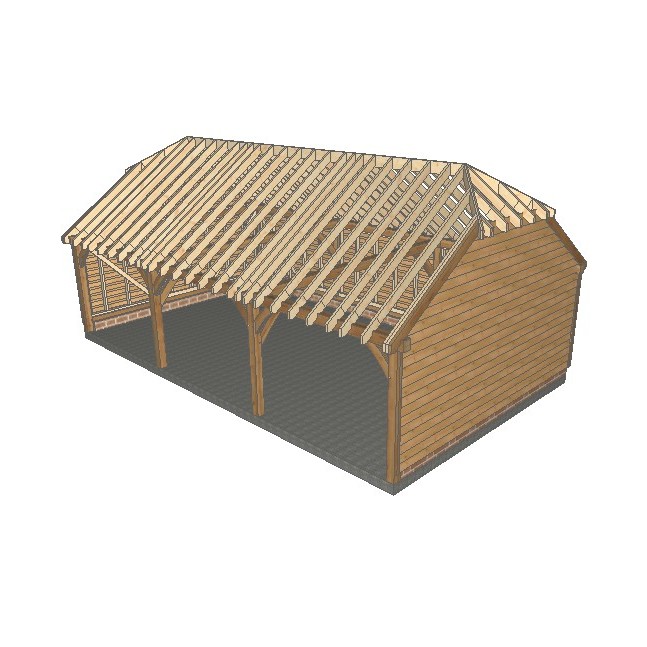

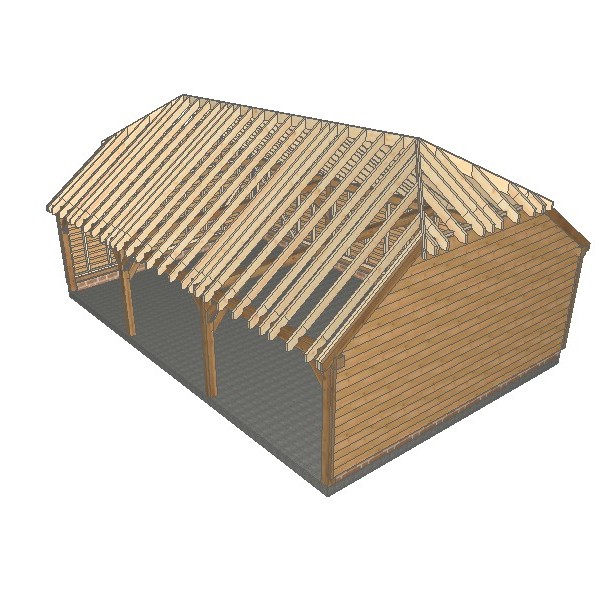

3-Bay A Depth Garage With Half-Hipped Roof
SKU00030

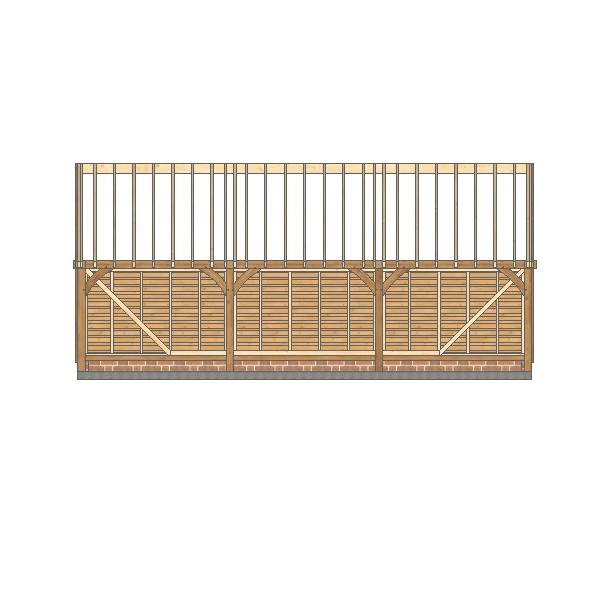

3 Bay Oak Framed Garage Kit
B-Depth

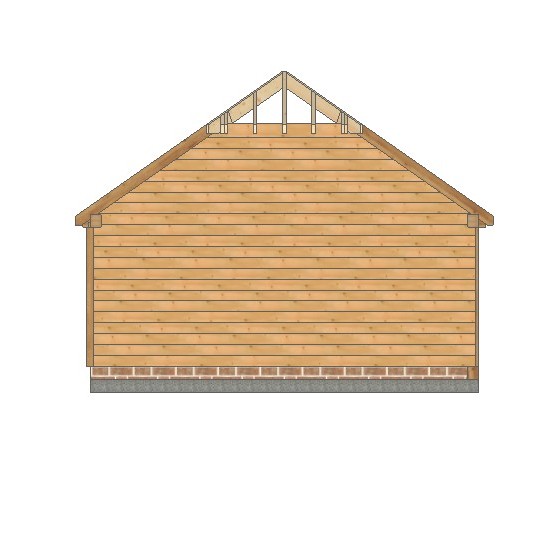

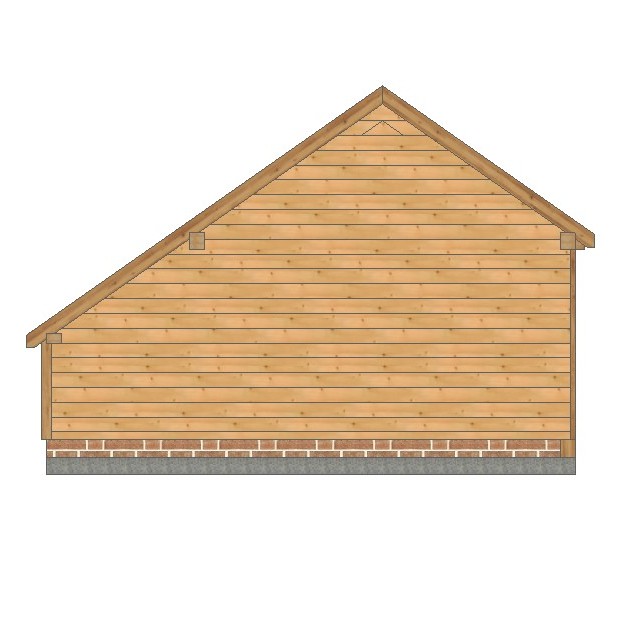

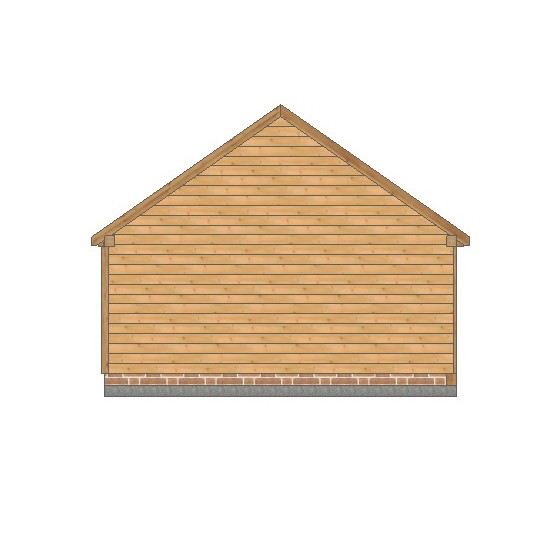

Our B-Depth garages are the same depth as the A-Depth, but since the rafters pitch across the entire depth, the ridge height is much greater, giving a much more usable space at the rear of the garage due to the increased head height.
The three bay variants are 8925mm wide x 5350mm deep with a ridge height of 4350mm approx.

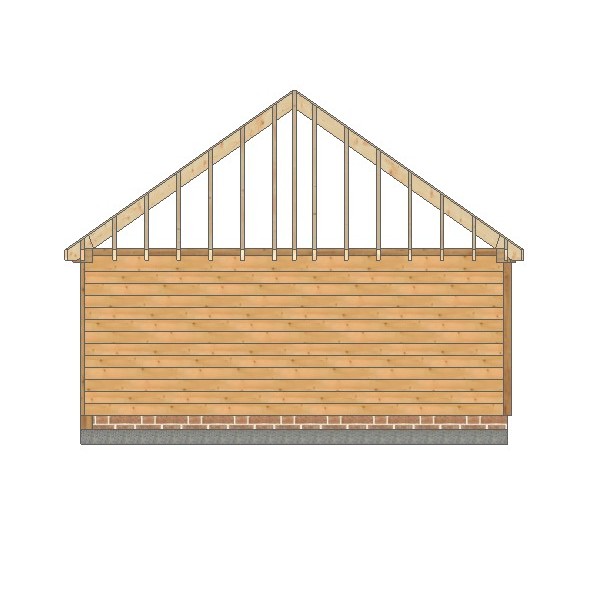

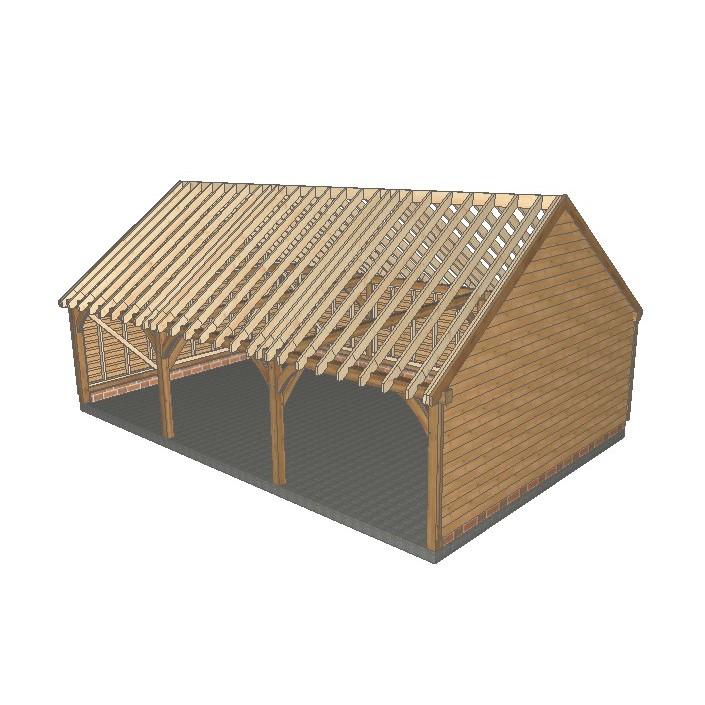

3-Bay B-Depth Garage with Gable Roof
SKU00032

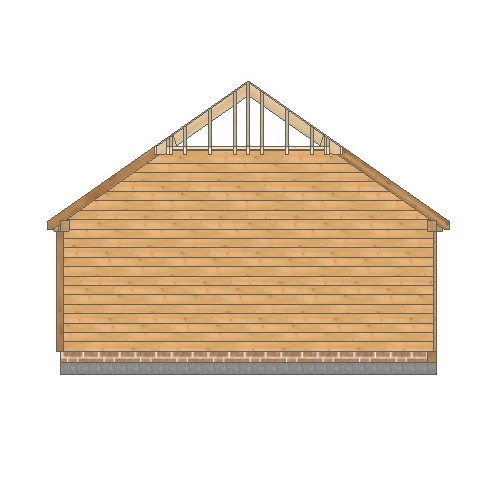

3-Bay B-Depth Garage with Fully Hipped Roof
SKU00034

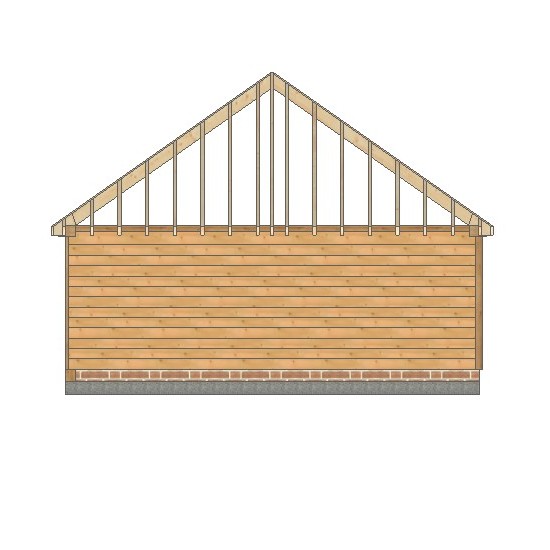

3-Bay B-Depth Garage with Half-Hipped Roof
SKU00033

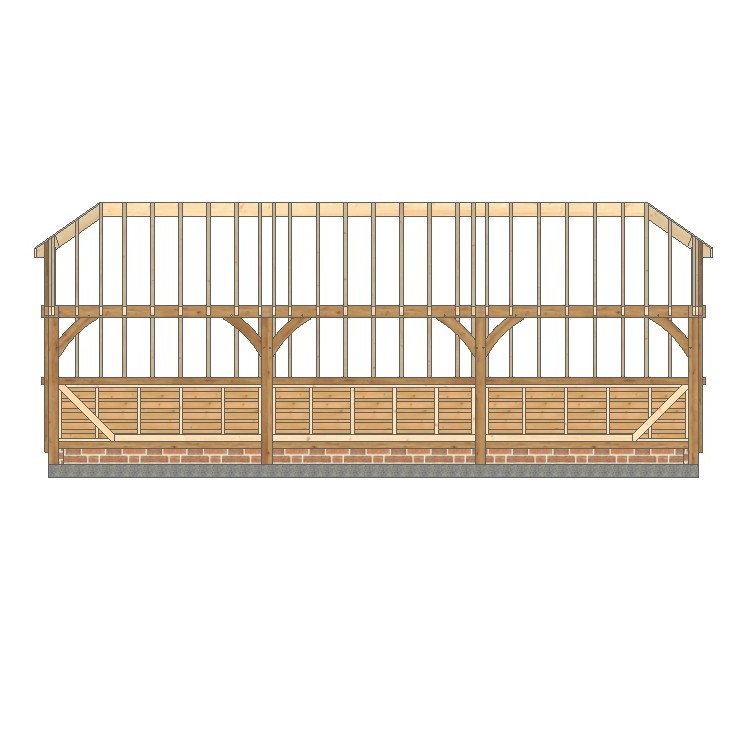

3 Bay Oak Framed Garage Kit
C-Depth
Our C-Frame garages are the deepest in the range, ideally suited to larger cars.
The three bay variants are 8925mm wide x 6000mm deep with a ridge height of 4600mm approx.
3-Bay C-Depth Garage with Gable Roof
SKU00035

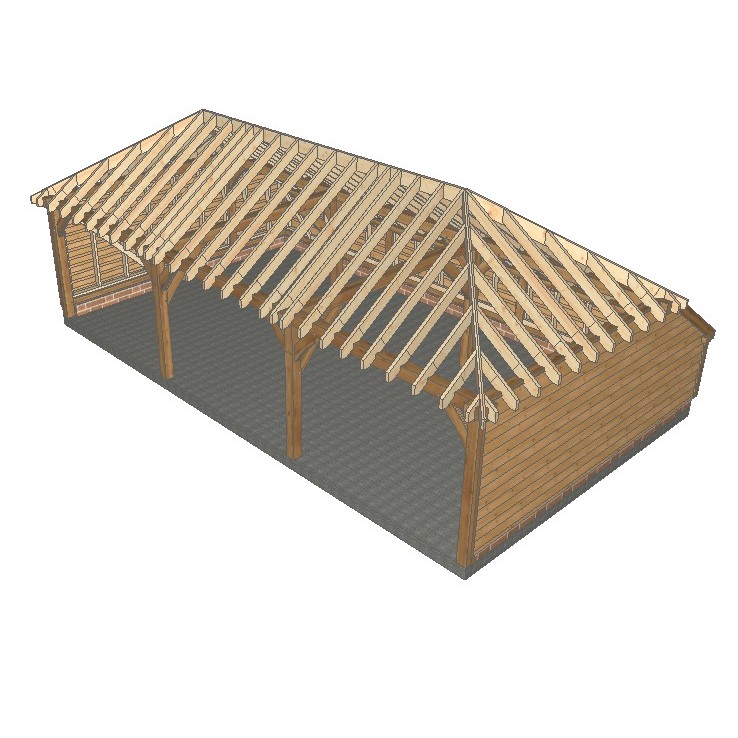

3-Bay C-Depth Garage with Fully Hipped Roof
SKU00037
3-Bay C-Depth Garage with Half-Hipped Roof
SKU00036
